Cartridge -BlowMPC

Cartridge Filter-SCF

Product Description

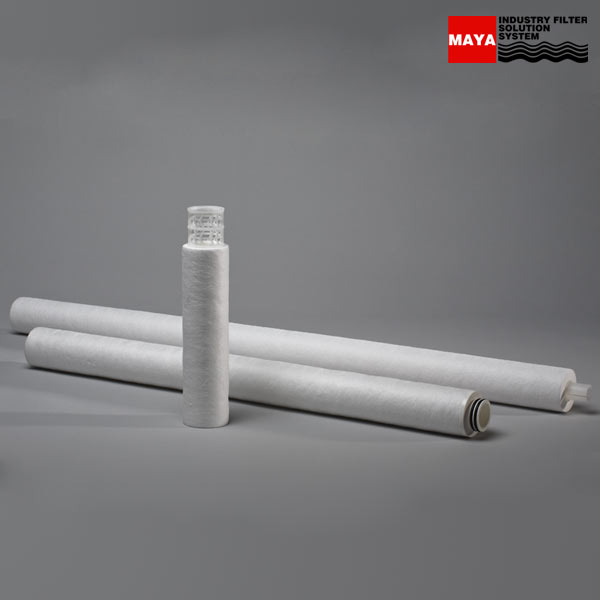

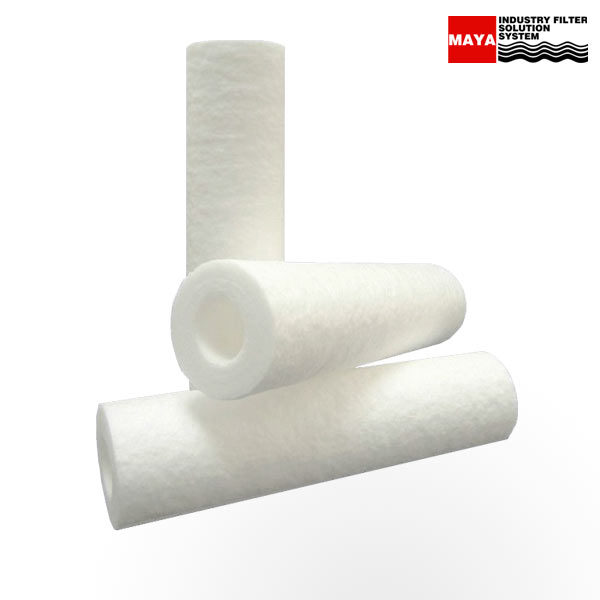

Cartridge -BlowMPC

Series Melt Blown Filter Cartridge is made of bonding melt-blown polypropylene fibers and has three dimensional millipores inside. Pore sizes are large-to-small gradiently distributed from outside to inside. Its filtration rating ranges 1μm to 50μm.
It can remove impurities in different sizes and has the advantages of high porosity, low pressure drop, long service life, low cost and good pre-filtration performance. It is widely used in nominal filtration.

Filter Medium
PP
Structural Components
PP
Seal Materials
Silicone,EPDM,Viton,NBR
Construction Method
Melt-blown
removal rating
(Norminal)
0.1um,0.5um,1.0um,5.0um,
10um,20um, 50um
Size
  OD.Φ63mm , ID.Φ28mm ,
L:10″,20″,30″,40″

■ Large filtration area, better pressure reisistance
■ No media drops off and pore diameter changes along with pressure
■ Gradient structure, high dirty loading capacity
■ No chemical pollutant releasing, no bubbles while filtering
■ Super fine pores, low pressure drop
■ Long service life
