Cartridge -FiberMMC
Product Description

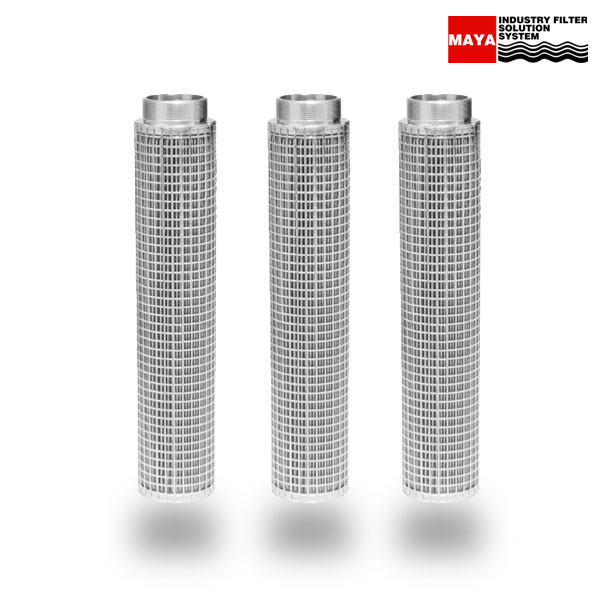

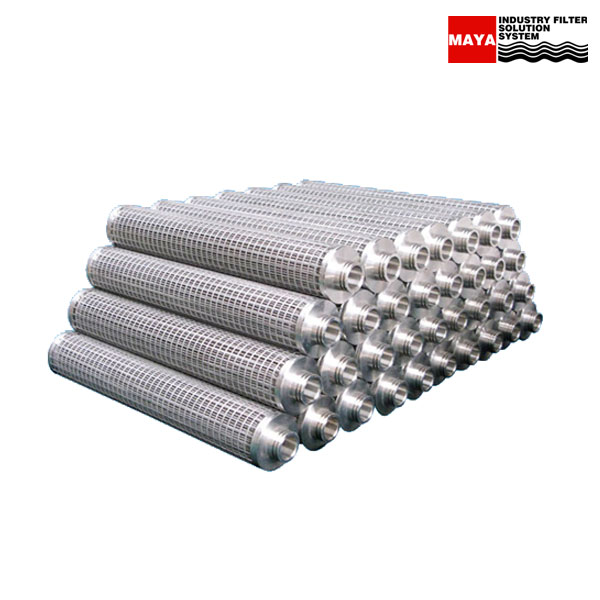

Cartridge -FiberMMC

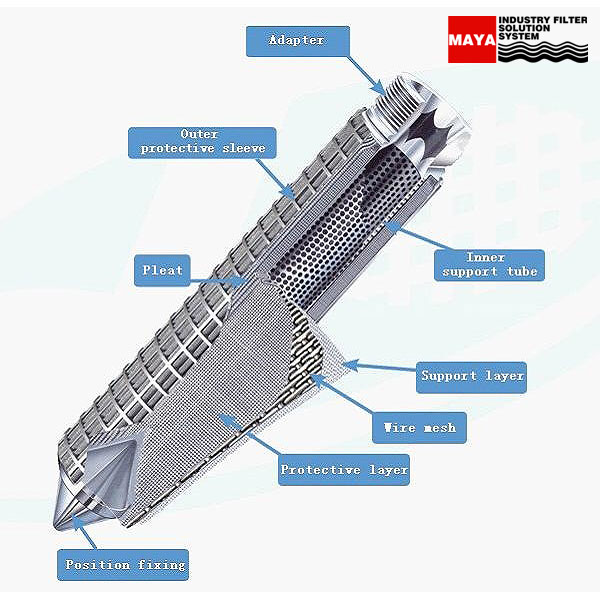

FiberMMC Series Sintered Metal Filter Cartridge is made of stainless steel fibers by sintering, pleating and welding. Its filtration ratings ranges from 3μm to 100μm. It has uniform pore size, high filtration rating, high porosity, large surface area, high dirty holding capacity and high flowrate, thus is particularly suitable for applications of high temperature, strong solvents and high pressure. It is reusable after cleaning and regenerating.
| Filter Medium |
316 stainless steel wire cloth
|
|---|---|
| Structural Components |
100% 316stainless steel
|
| Seal Materials |
Please refer to ordering information
|
| Construction Method |
Welded( no adhesives)
|
| removal rating (Norminal) |
2.0um,5.0um,10um,15um,
20um,35um, 60u,100um |
| O.D. |
Φ65mm Φ70mm ….
|
■Excellent permeability, low pressure drop, high dirt holding capacity.
■ No changes of the pore size and shape in sintering process.
■ High thermostability and corrosion resistance.
■ Metal fiber felt porosity is much more higher than wire mesh.
